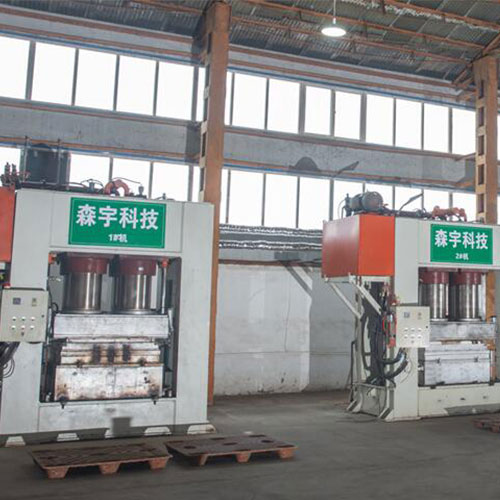

Compressed Wood Pallet Machine

A compressed wood pallet machine, also known as a presswood pallet machine or pallet block machine, is a specialized piece of equipment used to manufacture compressed wood pallets. These machines use a combination of wood fibers, binders, and heat and pressure to create the pallet blocks that form the core structure of the pallets.

Here's a general overview of how a compressed wood pallet machine works:

1. Raw material preparation: The process begins with preparing the raw materials, which typically include wood waste or fibers, such as sawdust, shavings, or wood chips. These materials are often mixed with a binding agent, such as resin or adhesive, to enhance the pallet block's strength and durability.

2. Mixing and blending: The prepared wood fibers and binders are mixed together in the machine's hopper or feeder. This ensures a homogeneous mixture that will provide consistent quality for the pallet blocks.

3. Compression and heating: The mixture is then fed into a compression chamber or mold of the machine. The machine applies high pressure and heat to the mixture, compressing it into the desired shape and density. The combination of pressure and heat activates the binding agent, which helps the wood fibers adhere together and form a solid block.

4. Cooling and solidification: After the compression process, the pallet blocks are cooled down to allow them to solidify and maintain their shape. Cooling can be achieved through various methods, such as air cooling or water cooling, depending on the machine's design.

5. Cutting and finishing: Once the pallet blocks have solidified, they are cut to the desired size and shape, typically following standard pallet dimensions. The machine may have built-in cutting mechanisms or separate cutting equipment for this purpose. Additionally, the pallet blocks may undergo additional processes, such as sanding or surface treatment, to enhance their appearance and smoothness.

6. Pallet assembly: The cut and finished pallet blocks are then assembled to form the complete compressed wood pallet. This can be done manually or using automated pallet assembly systems, depending on the production scale and requirements.

It's worth noting that different manufacturers may have variations in the design and operation of their compressed wood pallet machines. Some machines may offer additional features, such as adjustable block density, multi-layer block formation, or integration with pallet stacking and wrapping systems for streamlined production.

By using a compressed wood pallet machine, manufacturers can produce pallets in a cost-effective and efficient manner, utilizing recycled or waste wood materials while meeting the specific requirements of their customers.
