CNC Lathe Machine

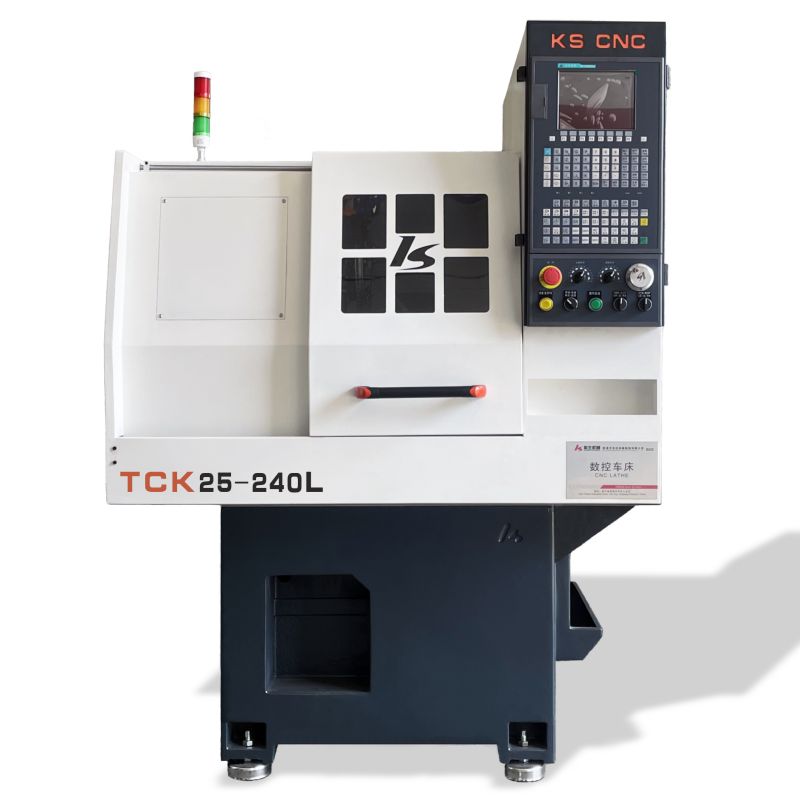

A CNC (Computer Numerical Control) lathe machine is a precision machining tool that uses computer control to automate and control the turning or rotational machining process. These machines are commonly used in manufacturing and machining industries to produce various parts, components, and prototypes with high precision. Here are the key features and aspects of a CNC lathe machine:

1. Turning Operation: A CNC lathe machine is primarily used for turning operations, which involve rotating a workpiece while a cutting tool removes material from it. This process is commonly used to create cylindrical or conical shapes, such as shafts, threads, and various rotational components.

2. Computer Numerical Control (CNC): CNC technology allows the machine's movements and operations to be controlled with a computer. A CNC lathe machine is programmed with a set of instructions (G-code) that specify the toolpath, cutting speeds, feed rates, and other parameters required for the machining operation. This automation enables precise and repeatable manufacturing processes.

3. Tooling: CNC lathes use a variety of cutting tools, including carbide inserts, drills, and boring bars, to remove material from the workpiece. These tools can be automatically changed and adjusted during the machining process, enhancing versatility and efficiency.

4. Workpiece Holding: The workpiece is securely held in a chuck or collet, which rotates the workpiece while the cutting tool moves along its length. The workpiece can be cylindrical, bar-shaped, or custom-shaped depending on the machining requirements.

5. Axis of Motion: CNC lathe machines have multiple axes of motion. The primary axes are typically the X and Z axes. The X-axis controls the horizontal movement of the cutting tool, while the Z-axis controls the longitudinal movement of the tool along the workpiece. Some CNC lathes may have additional axes for more complex operations.

6. Automatic Tool Changes: Many CNC lathes are equipped with automatic tool changers (ATCs) that can switch between different cutting tools during a single machining cycle. This allows for the machining of complex parts without manual intervention.

7. Turret or Tool Post: CNC lathes often have a turret or tool post that holds multiple tools. The turret can be indexed to bring the appropriate tool into position, reducing tool change time and increasing efficiency.

8. Precision and Accuracy: CNC lathe machines are known for their high precision and accuracy. They can produce parts with tight tolerances, ensuring consistency and quality in manufacturing.

9. Versatility: CNC lathes can be used for a wide range of materials, including metals, plastics, and composites. They are suitable for both high-volume production runs and prototyping.

10. Programming: Programming a CNC lathe machine requires knowledge of G-code programming or the use of CAM (Computer-Aided Manufacturing) software, which generates the required code based on a CAD (Computer-Aided Design) model of the part.

11. Safety: Safety measures, such as machine guarding and emergency stop buttons, are essential when operating CNC lathe machines due to their high-speed rotating parts and cutting tools.

CNC lathe machines play a critical role in modern manufacturing, enabling the production of precise and complex parts efficiently and with a high degree of automation. They are widely used in industries such as aerospace, automotive, medical device manufacturing, and many others where precision machining is essential.
